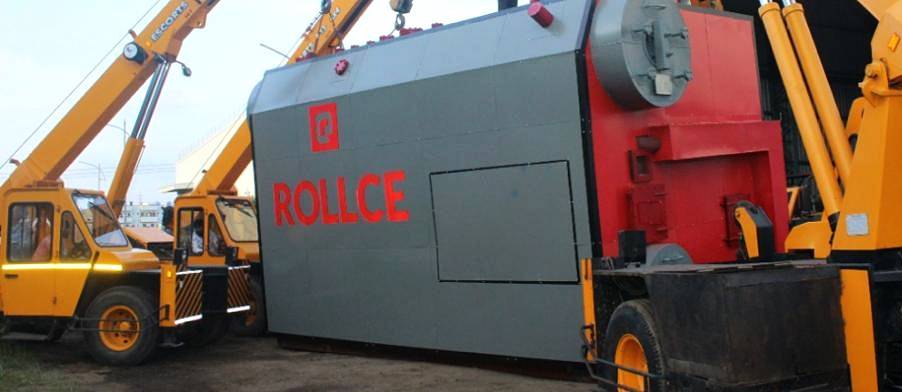

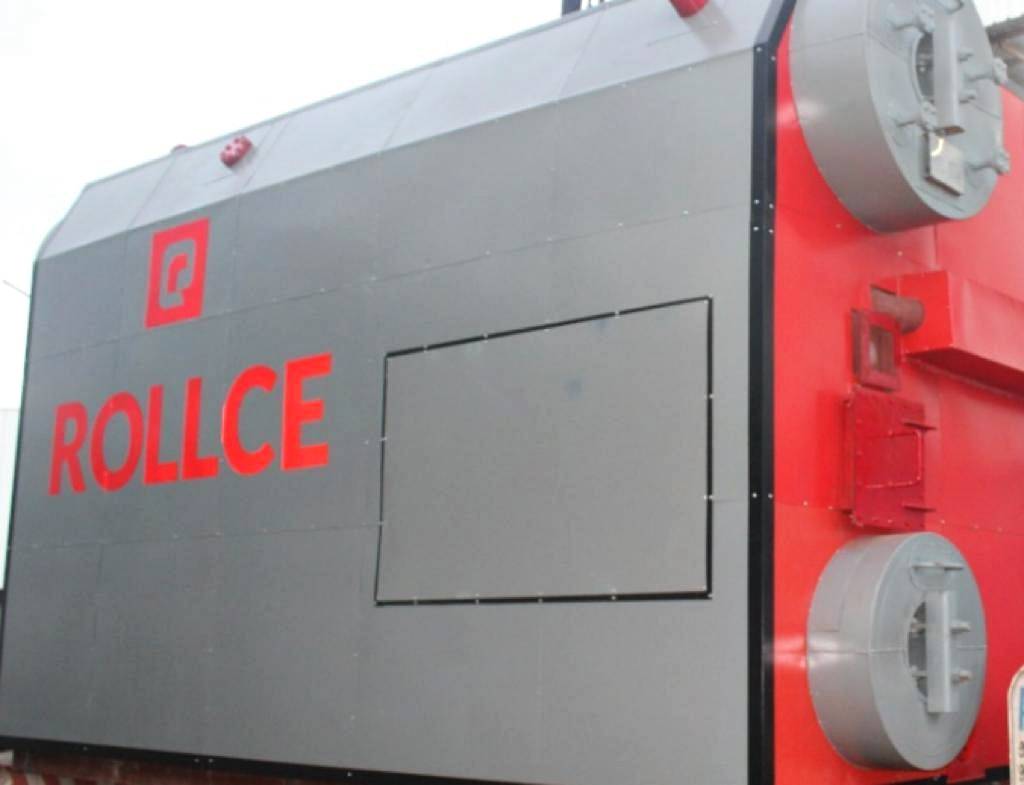

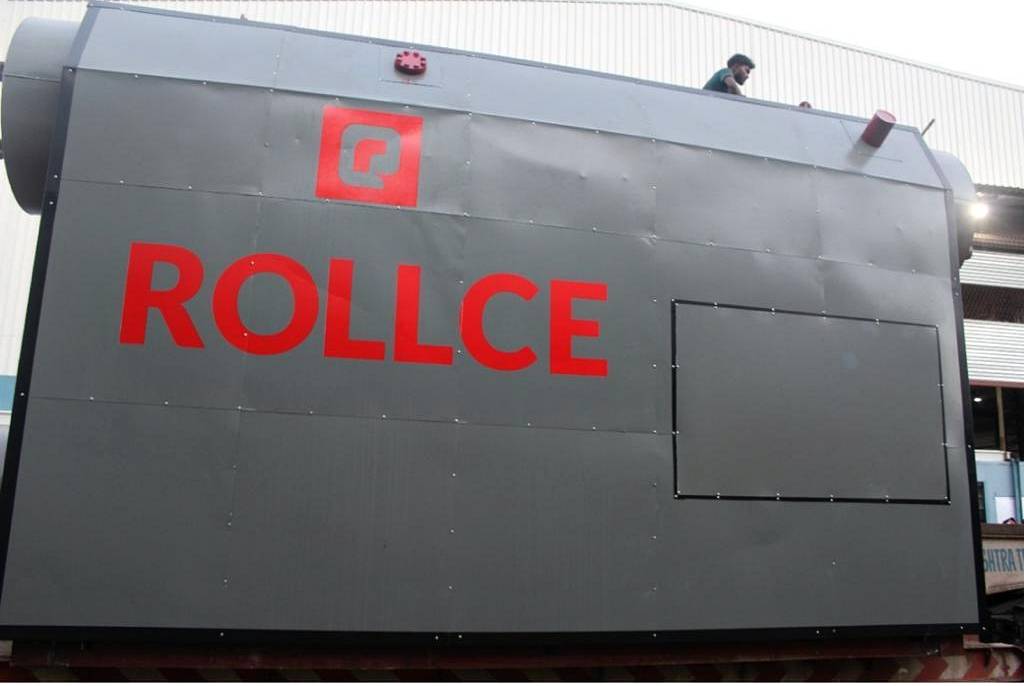

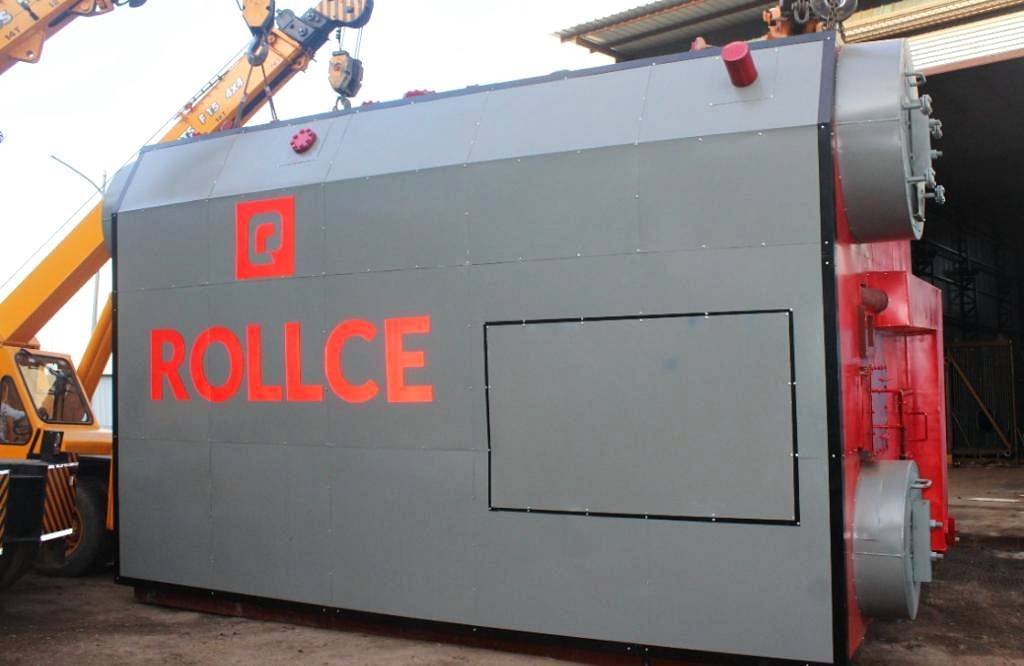

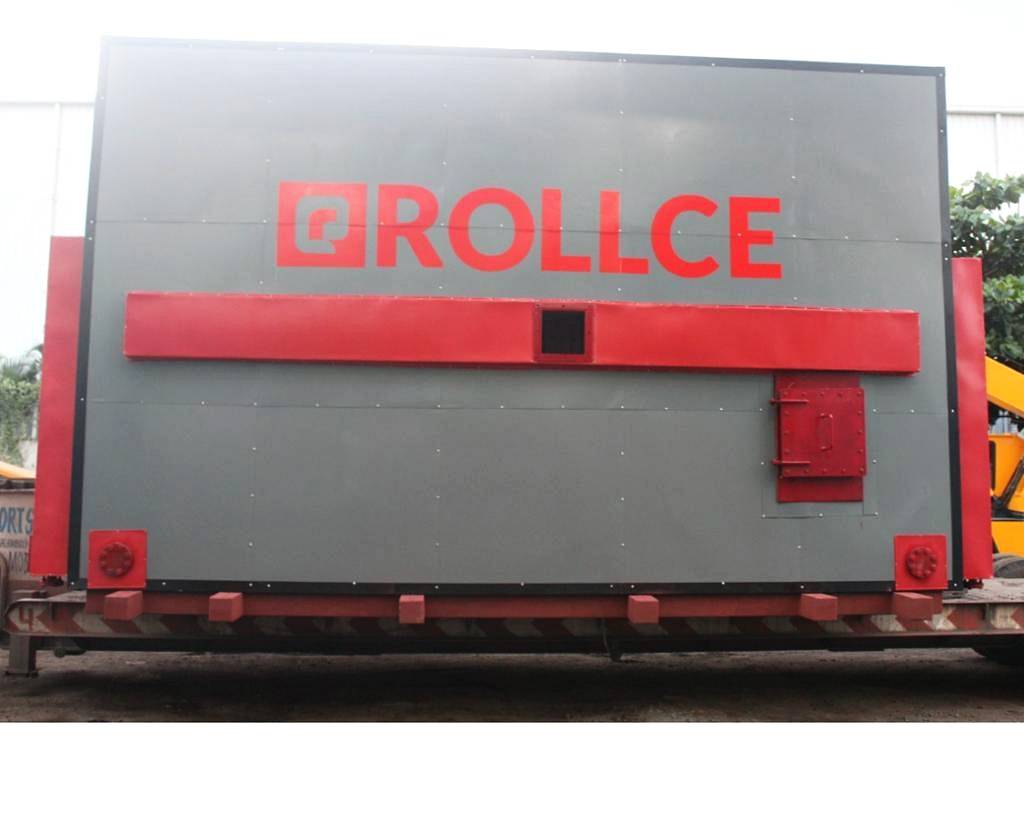

Coal & Biomass Fired Package Bidrum Steam Boiler
HEATING
Product Overview

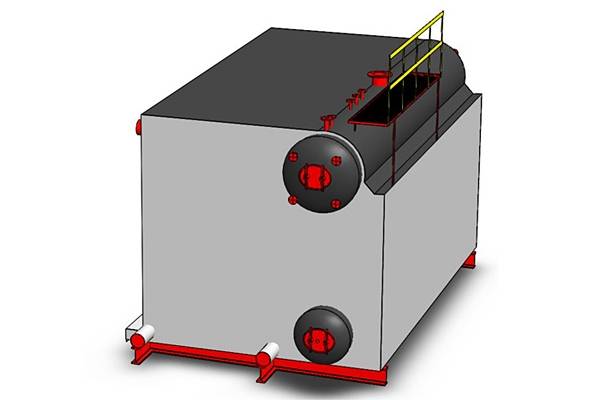

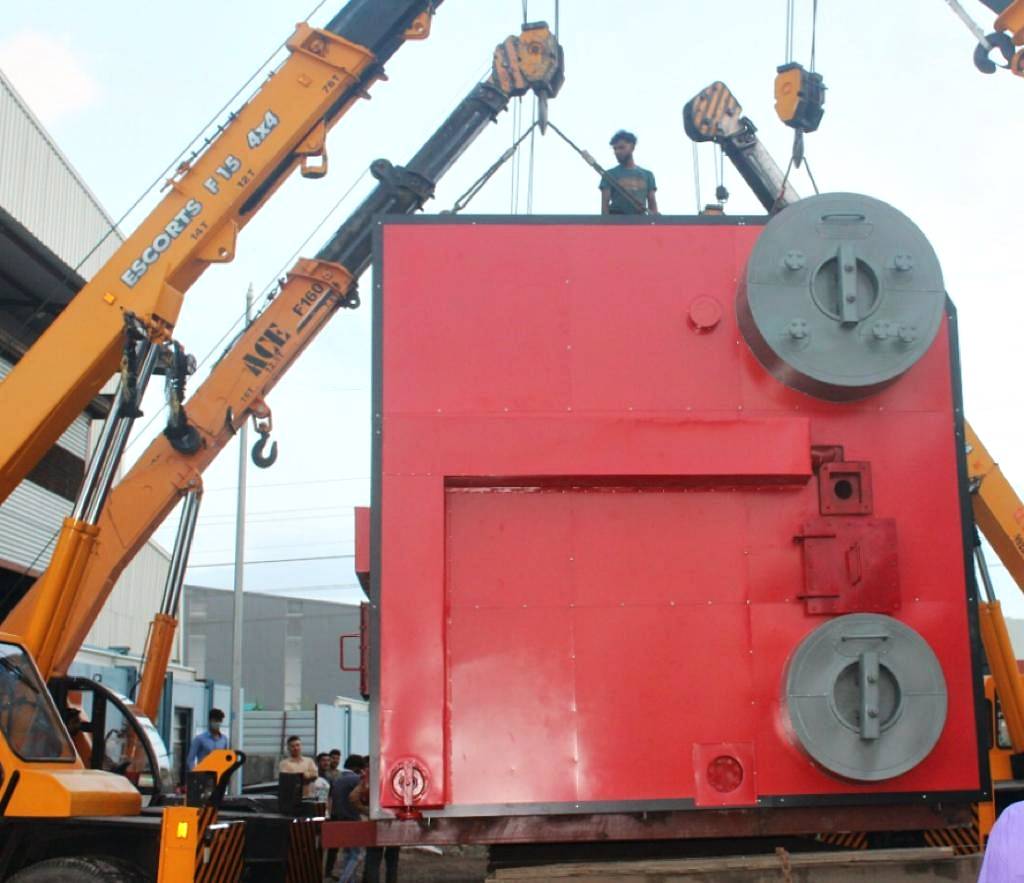

BDL Series boiler shall be provided with one steam, and one water drum and the drums shall be of fusion-welded type. Both the drums shall be provided with Semi-Ellipsoidal dished ends fitted with man-ways on both ends. The manway doors shall be arranged to open inwards. The drum shell dished ends and the manway doors shall conform to SA 515 Gr. 70 / SA 516 Gr. 70 or equivalent material specifications. The system of internals consisting of the Screen Box, shall ensure steam of the highest purity at all loads of the boiler. The Furnace envelope shall be constructed of fully water-cooled membrane/fin welded walls and adequately supported. The construction shall be fully gas pressure tight, with welded corners, and the furnace shall be strengthened by providing a buckstay and tie-bar system. The boiler bank shall be of inline arrangement.
Product Features
- Fully Packaged Boiler- Reduction in installation time and cost. Minimal site activity.
- Water Tube Design- Ensures Uninterrupted Boiler Operation ensuring higher Boiler Operating hrs.
- Multi-Fuel Flexibility- Coal/Rice Husk/Wood-chips/Saw-Dust/EFB/Coco-Shell/Palm Kernel Shell
- Modular Construction- Easy to Transport and Install
- High Efficiency- With Higher Heat Transfer Area, and dual heat recovery on Water and Air- Side
- Optional 3-element control systems- For close monitoring of water level, steam flow & feed water flow
- PLC based control panels- So system which can be hooked to SCADA or DCS systems
- Multi-Combustor Options- Reciprocating Grate, Travelling Grate, Pulsating Grate, Fluidized Bed
Capacity
6000 kg/hr to 16,000 kg/hr
Fuel
Coal/Coco-Shell/Rice Husk/Wood-Chips/Saw-Dust/Palm Kernel Shell
